This 2020 GXV (Global Expedition Vehicles) Patagonia is built on the Kenworth K370 4x4 chassis to achieve a highly-maneuverable XV, while maintaining a spacious and comfortable living area. This Patagonia is built with the most popular layout and is highly-optioned, including a heated floor system. Here are the spec hi-lights.


Custom Patagonia Expedition Vehicle
Body-60mm, highly-insulated sandwich panel construction
Living Area: 22 Length, 8 Wide, 67 Interior Height
Windows: Armor Vision dual-pane Glass, qty 5
Skylights, Opening: Armor Vision dual-pane Glass, qty 3
Entry Door: 60mm construction with 3-point Locking system
Cab-to-Cabin Access (approx. 45 x 32) with Locking Door
Large Underbed Storage Area Accessible from 2 Exterior doors, approx. 90w x 50l x 35h
--Slide-out Cargo Tray for easy access, approx. 44 x 90

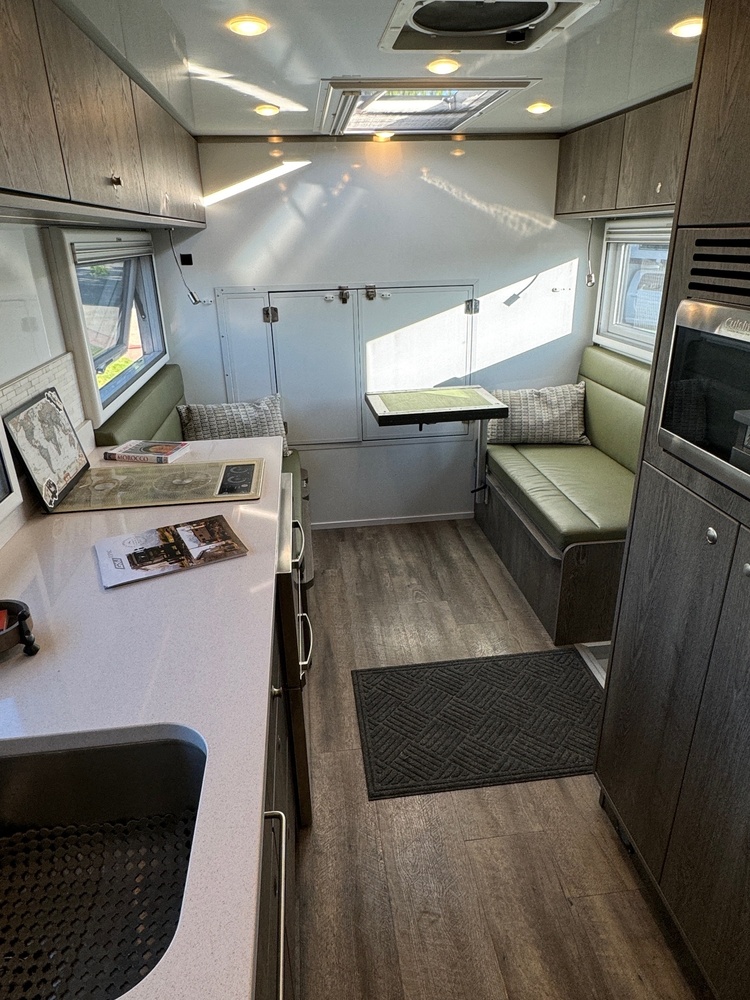

PATAGONIA INTERIOR

-Kitchen Galley, approx. 81
-Quartz countertop with Tile Backsplash
-Vitrifrigo 2-Drawer Refrigerator/Freezer
-Kenyon 2-Burner Induction Cooktop
-Convection Microwave Oven
-Seagull IV Drinking Water Filter
-Stainless Deep Bowl Sink
-Upper Cabinets with Indirect Lighting on Dimmer
-ToeKick Lighting on Dimmer
-Window: 47 wide

Dining Area, approx. 50 x 90
-50 Seating on both sides
-2 Individual Tables on Swivel Mounts
-2 Windows (47) with Blinds & Screens
-Upper Cabinets on both sides
-Both Booth Seats have storage
-120v and USB Outlets

Bedroom, approx. 81 x 90
-RV King Mattress, north-south orientation
-Bedside cabinets on both sides with Charging Stations
-Upper cabinets on both sides
-LED Reading Lights
-2 Windows (37) with Blinds & Screens
-Skylight: Armor Vision Dual-Pane Glass with Screen & Blind (opening skylight)


Wash Room
-Wet Bath, approx. 48 x 33
-Lower Teak Sink Cabinet with Storage
-Flip-up Counter
-Triple Teak Medicine Cabinets with Mirror
-Thetford Cassette Toilet, Swivel Style
-Hydronic Heated Towel Bar
-Skylight: Armor Vision Dual-Pane Glass with Screen & Blind (opening skylight)

Clothes Closet
-45w x 74h, approx.
-Lower: 6 drawers
-Upper: Hanging & Shelves

Pantry Closet
-20w x 74h, approx.
-Equipped with Pull-out Pantry and Shelves above

Washer-Dryer Cabinet
-Splendide Washer-Dryer Combo
-Storage above, approx. 28w x 33d x 18h

Audio-Visual
-Jensen 12v HDTV above entry door
-Bose Solo5 Sound Bar
-StarLink Satellite system

MECHANICAL SYSTEMS

Electrical
--Mastervolt Electrical System
--Marine-grade Wiring and Sealed Connectors throughout
--Mastervolt Lithium-ion Batteries, 800ah
--Mastervolt Inverter/Charger, 4000w
--Solar Panels, Qty 6. Total 1.2kw
--Onan QD5000 Diesel Generator with Auto-Start

Climate Control
-Webasto Thermo Pro 90 Hydronic Heat system, 6,100 to 26,000 Btu
-Rooftop Air Conditioner, 14,000 Btu
-Vent Fan
-In-Floor Heat System

Water System
-135 gallon Fresh Water
-28 gallon Gray Water
-Indel Water Heater, Hydronic or 120v
-Exterior Shower

EXTERIOR ACCESSORIES
-Kenyon Electric Grill on Slide-out. Installed in 18 --Underbody storage box
-Max Trax, installed on side of Rear Wall Storage Boxes, Orange

EXTERIOR ALUMINUM STORAGE BOXES
(Black Powdercoat)

-Underbody Storage Boxes
44 x 24 x 23 (1-left, 1-right)
18 x 24 x 23 (1-left, 1-right)
-Rear Wall Storage Boxes
74 x 20 x 18
43 x 20 x 18



2020 KENWORTH K370 4x4 CHASSIS
-4x4 Conversion with high/low transfer case
-194 wheelbase

Exterior Upgrades:
-Goodyear 425/65R22.5 Tires on Alcoa Aluminum Wheel, Black powdercoat
-Ti.systems Semi-Automatic Tire Inflation System
-Custom-Valved King Shocks
-2 Fuel Tanks, 100g ea
-Front Heavy-Duty Bumper with Superwinch Talon 18.0 (Synthetic)
-2-9 LED Auxiliary Lights installed in Front Bumper
-Custom Aluminum Roof Rack with Side Brush Guards
-50 LED Lightbar Installed on Roof Rack
-2-Aluminum Storage Boxes in Roof Rack
-Rear Winch System

Cab Upgrades:
-Knoedler Air-Ride Leather Seats, Gray Leather
-Custom Center Console with Storage
-Additional USB & 12v Outlets
-Kenwood DMX7704S with Nav in-dash
-JBL Subwoofer
-Camera System: Backup, Left & Right Driving
-FLIR Camera System


Location: Phoenix, AZ
